Description

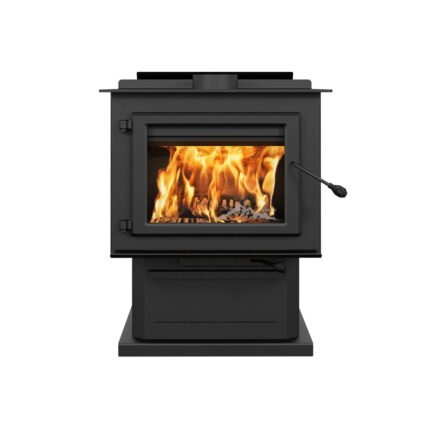

Ventis HES140 Small Wood Stove on Pedestal – VB00023
Product Description
The Ventis HES140 Wood Insert with Blower is a 1.4 cu. ft. black freestanding pedestal fireplace with a heating capacity of between 250 to 1,200 sq. ft. A perfectly designed solution to heat your home and has a max log length of 17″. This unit is 2020 EPA Certified.
Feature
- 1.4 cu. ft. firebox
- Heating capacity 250 to 1,200 sq. ft.
- Optimum efficiency : 78%
- Maximum log length: 17”
- Flue diameter: 6”
- Metallic black freestanding pedestal model
- Air-wash system
- Fire viewing area: 83 sq. inches
- 1.4 cu. ft. firebox
- Heating capacity 250 to 1,200 sq. ft.
- Optimum efficiency : 78%
- Flue diameter: 6”
- Metallic black freestanding pedestal model
- Air-wash system
- Fire viewing area: 83 sq. inches
Specifications
- Maximum BTU Output with Dry Cordwood: 45,000
- Average Particulate Emissions Rate: 1 4/5 g/hr
- Recommended Heating Area: 1,200
- Firebox Dimensions: 1 2/5 cubic feet
- Maximum Log Size: 17″
- 74% efficient based on an EPA-specified test method (CSA B 415-10 stack loss method). Actual efficiency will vary.
Appliance Performance
|
Fuel type |
Dry cordwood (16″ recommended)
|
|
Recommended heating area |
250 – 1,200 ft² |
|
Overall firebox volume |
1.7 ft³ |
|
Maximum burn time |
5 hours |
|
Maximum heat output-dry cordwood |
45,000 BTU/h |
|
Minimum overall heat output rate |
12,124 BTU/h (3.55 kW)
|
|
Maximum overall heat output rate |
26,700 BTU/h (7.83 kW)
|
|
Average efficiency-dry cordwood (HHV) |
74 % |
|
Average efficiency-dry cordwood (LHV) |
79 % |
|
Optimum efficiency |
80 % |
|
Optimum heat transfer efficiency |
79 % |
|
Average particulate emission rate |
1.8 g/h |
|
Average CO |
74 g/h |
- Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
- Optimum overall efficiency at a specific burn rate (LHV).
- This appliance is officially tested and certified by an independent agency.
- The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
- As measured per CSA B415.1-10 stack loss method.
- Higher Heating Value of the fuel.
- Lower Heating Value of the fuel.
- The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
- Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
- Carbon monoxyde.
General Features
|
Maximum log length |
17″ |
|
Shipping weight |
282 lb (128 kg) |
|
Overall dimension (Width) |
20″ |
|
Overall dimension (Height) |
30 1/4″ |
|
Overall dimension (Depth) |
29″ |
|
Alcove installation approved |
Yes |
|
Mobile home approved |
Yes, with fresh air intake
|
|
Premium quality blower included (CFM) |
Optional |
|
Certified according to applicable standards |
CAN/USA accredited laboratory
|
|
Combustion technology |
Non-catalytic |
|
Stainless-steel secondary-air system |
Yes |
|
Flue outlet diameter |
6″ |
|
Recommended chimney diameter |
6″ |
|
Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F)
|
|
Minimum chimney height |
12′ |
|
Door type |
Single, glass with cast iron frame
|
|
Door opening size (Width) |
12″ |
|
Door opening size (Height) |
7 5/8″ |
|
Glass type |
Ceramic glass |
|
Glass surface – W x H |
10 1/8″ x 8 1/4″ |
|
Firebox size (Width) |
14 1/4″ |
|
Firebox size (Height) |
11 3/4″ |
|
Firebox size (Depth) |
19 1/8″ |
|
Log positioning |
Loading over depth
|
|
Firebox lined with refractory bricks |
Yes |
|
Baffle type |
High quality vermiculite
|
|
High-efficiency certified appliance |
Yes, EPA 2020 certified
|
|
Canadian Standard (emissions) |
CSA B415.1-10 |
|
USA Standard (emissions) |
EPA |
|
Canadian Standard (safety) |
ULC S627 |
|
USA Standard (safety) |
UL 1482, UL 737
|
|
Steel thickness-body |
3/16″ |
|
Steel thickness-top |
5/16″ |
Product Documents
Product Catalogue
Installation and User’s Manual
Safety & General Information
Fresh Air Kit Installation Instructions
Tax Credit Qualification and Summary
Appliance Dimensions
