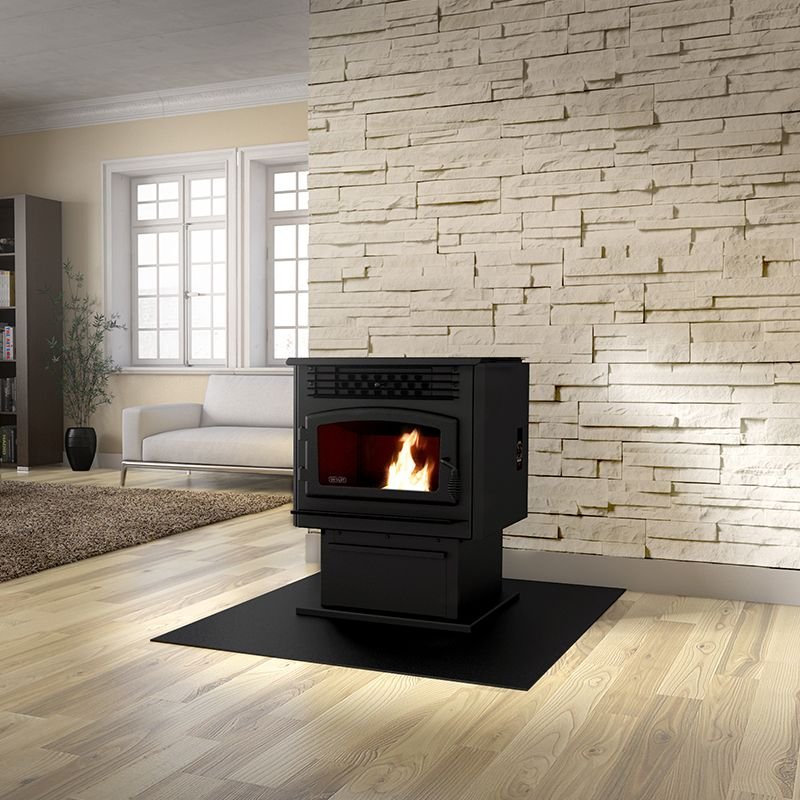

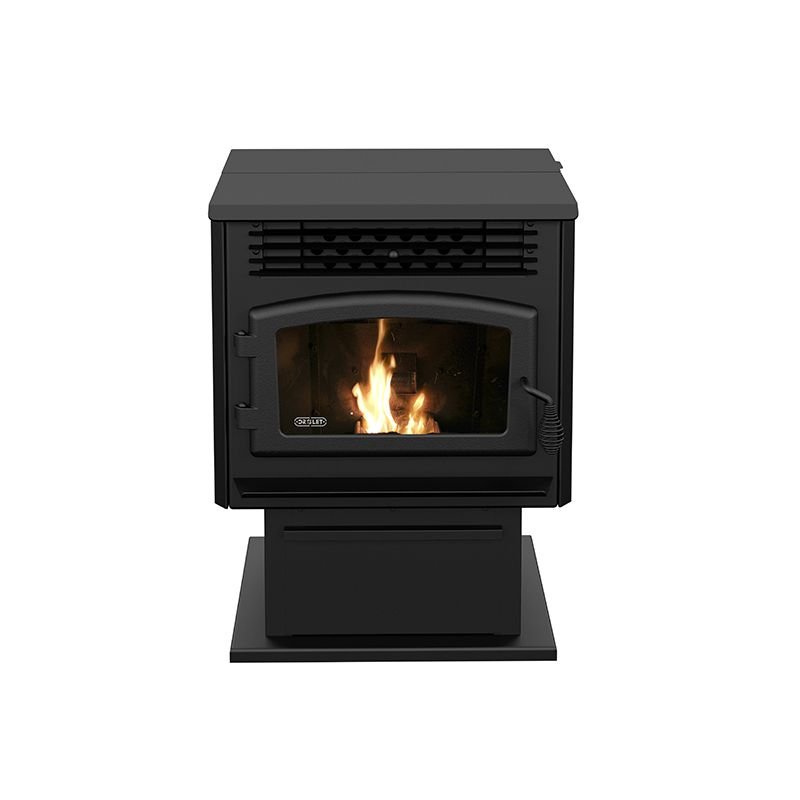

Drolet Eco-55 Pellet Stove DP00070

Add On

55 Series Hopper Extension (+$212.00), Fresh Air Intake Kit (+$60.00), Pellet Stove Only

Product Type

Pellet Stove

Total Delivery: 1–4 Business Days

3-Year Limited Warranty

90-Day Easy Returns

(713) 360-1986

SKU: exact10-eleganthomeusa-49244 Category: Wood & Pellet Heating

Drolet Eco-55 Pellet Stove DP00070

Product Description

Easy to use and maintain, the Eco-55 pellet stove is ideal for heating spaces up to 2,000 ft². It features intuitive electronic control and easy to use thermostatic control. Cleaning is a breeze, with access to components that are removable without tools. Certified at only 0.96 g/h, the Eco-55 produces up to 39,260 BTU/h, and provides clean and efficient heating.

Included: blower, ceramic glass, ash lip

Burn time up to 51 hours (up to 120 hours with the optional hopper extension)
Hopper capacity of 60 lb
Top-feed burner
EPA 2020 certified
Proudly made in Canada
Limited lifetime warranty
Certified for mobile home and alcove installation
Weight : 279 lbs

Specifications

Fuel type (12)	Pellet (Premium grade or better)
Recommended heating area (10)	500 – 2,000 ft²
Hopper capacity	60 lb (27 kg)
Maximum burn time (10)	51 h
Maximum heat input rate (4)	39,260 BTU/h (11.5 kW)
Minimum overall heat output rate (5)	6,648 BTU/h (1.95 kW)
Maximum overall heat output rate (5)	28,540 BTU/h (8.36 kW)
Minimum average overall efficiency (HHV) (6) (8)	70.3 %
Maximum average overall efficiency (LHV) (6) (7)	75.8 %
Optimum efficiency (2)	78.4%
Optimum heat transfer efficiency (9)	73 %
Burn rate	1.2 – 4.7 lb/h
Average particulate emission rate (3)	0.96 g/h
Average CO (11)	7.6 g/h
Average electrical power consumption for ignition cycle (1)	3.02A (360 W)
Average electrical power consumption for continuous operation (1)	1.3 – 2.5A (51 – 140 W)
Size	Medium
Alcove installation approved	Yes
Mobile home approved	Yes, with fresh air intake
High-efficiency certified appliance	Yes, EPA 2020 approved
Combustion technology	Top-feed
Baffle type	Stainless steel
Flue outlet diameter	3″
Chimney diameter	3″ \| 4″
Type of chimney	ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Overall dimension (Width)	25 1/4″
Overall dimension (Height)	32 5/8″
Overall dimension (Depth)	29 1/2″
Premium quality blower included (CFM)	176 CFM included
Voltage and frequency	120 VAC / 60 Hz
Noise level at 6 feet	47 dBa (+/- 3 dBa) – 60 dBa (+/- 3 dBa)
Door type	Single, glass with cast iron frame
Glass type	Ceramic glass
Glass surface – W x H	15 3/4″ x 8 1/8″
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA, ASTM E2779
Canadian Standard (safety)	ULC S627
USA Standard (safety)	UL 1482, ASTM E1509
Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Warranty	Limited lifetime
Shipping weight	277 lb (126 kg)

Clearance To Combustibles

Country	Canada	United States
Clearance – Back wall	3″	3″
Clearance – Side wall	6″	6″
Clearance – Corner	3″	3″
Clearance – Base of the unit to ceiling**	48″	48″

Product Documents

Installation Manual

Dimensions

How to access fuses

How to replace F-160 thermodisc

How to replace L250 thermodisc

How to replace the auger motor

How to replace the combustion blower

How to replace the convection blower

How to replace the exhaust blower

How to replace the ignitor

How to test a component
