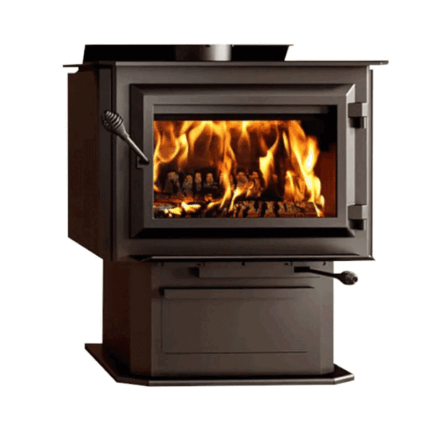

Ventis HES170 25″ Wood Stove w/ Pedestal | Direct Vent | VB00013

Ventis HES170 Wood Stove -Unit VB00013

Product Description

The Ventis HES170 medium sized single cast iron door wood burning stove on pedestal is recommended for heating smaller spaces from 500 to 1, 800 sq. ft. The firebox is lined with refractory bricks for better heat distribution with a fresh air intake allows for mobile home & alcove installation. The HES170 offers non-catalytic combustion technology and top heat deflector and side shields. This unit has a 6hr Maximum Burn Time, can hold 18″ logs and is EPA 2020 approved.

30% Tax Credit Program

• Manufacturer Tax Credit Certification Document

Feature

• 1.9 cu. ft. Firebox
• Heating capacity 850 to 1, 800 sq. ft.
• Optimum efficiency : 78%
• Non-Catalytic Combustion Technology
• Top Heat Deflector and Side Shields
• Optimum efficiency : 78%
• Emissions: 1.26 g/h
• BTU/hr, seasoned cord wood: 65,000
• 1.9 cu. ft. Firebox
• Heating capacity 850 to 1, 800 sq. ft.
• Optimum efficiency : 78%
• Non-Catalytic Combustion Technology
• Top Heat Deflector and Side Shields
• Optimum efficiency : 78%
• Emissions: 1.26 g/h
• BTU/hr, seasoned cord wood: 65,000
• Optional variable speed blower available for additional purchase

Appliance Performance

• Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
• Optimum overall efficiency at a specific burn rate (LHV).
• This appliance is officially tested and certified by an independent agency.
• The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
• As measured per CSA B415.1-10 stack loss method.
• Higher Heating Value of the fuel.
• Lower Heating Value of the fuel.
• The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
• Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
• Carbon monoxyde.

General Features

Product Documents

Product Catalogue
Installation and User’s Manual
Safety & General Information
Fresh Air Kit Installation Instructions
Appliance Dimensions
