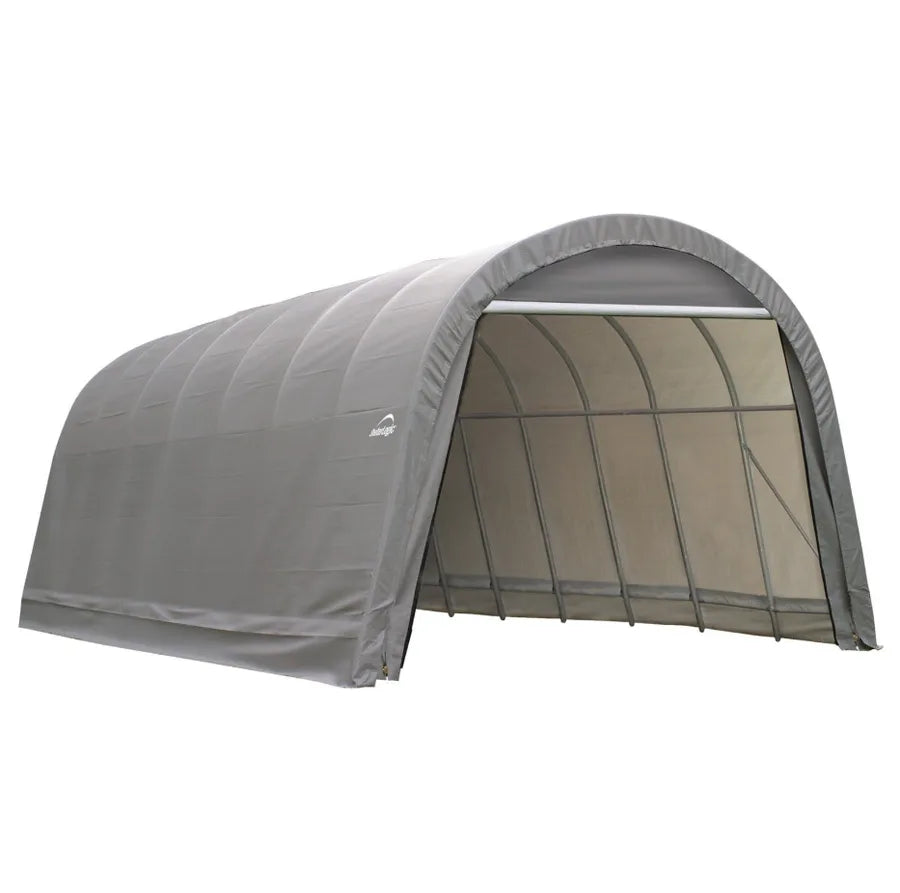

ShelterLogic 15 x 28 x 12 Round Top Shelter
ShelterLogic 15 x 28 x 12 Round Top Shelter
Couldn't load pickup availability
Product Overview
The ShelterLogic 15 ft. x 28 ft. x 12 ft. Round Top Shelter (model 95333, gray standard ShelterCoat configuration) provides approximately 398 sq. ft. of storage area and 3,912 cu. ft. of storage volume. The heavy-duty powder-coated steel frame with approximately 2-3/8 in. tube diameter supports a triple-layer, approximately 9 oz polyethylene cover that is UV-treated with heat-welded waterproof seams. Front and rear double-zippered fabric doors offer flexible access. ShelterLock rib stabilizers, Ratchet-Tite cover tensioning, Easy-Slide cross rails, and universal steel foot plates ensure structural integrity. On the certified ShelterCoat configuration, snow rating is approximately 40 PSF and wind rating is approximately 75 MPH. Anchoring is required. 1-year limited warranty on standard configuration.
Key Features
- Approximately 398 sq. ft. storage area and 3,912 cu. ft. storage volume
- Heavy-duty powder-coated steel frame, tube diameter approximately 2-3/8 in.
- Triple-layer approximately 9 oz polyethylene cover - UV-treated, heat-welded waterproof seams
- Front and rear double-zippered fabric doors
- ShelterLock rib stabilizers and Ratchet-Tite cover tensioning
- Easy-Slide cross rails and universal steel foot plates
- Certified snow rating approximately 40 PSF; wind rating approximately 75 MPH
- Anchoring required per manufacturer instructions
Specifications
| Specification | Value |
|---|---|
| Brand | ShelterLogic |
| Model | 95333 (gray standard ShelterCoat configuration) |
| Product Type | Round-top fabric garage/shelter |
| Nominal Size | 15 ft. W x 28 ft. L x 12 ft. H |
| Exterior Dimensions | approximately 178.3 in. W x 334.7 in. D x 145.6 in. H |
| Interior Dimensions | approximately 173.6 in. W x 330 in. D x 143.2 in. H |
| Storage Area | approximately 398 sq. ft. |
| Storage Volume | approximately 3,912 cu. ft. |
| Frame Material | Heavy-duty steel |
| Frame Tube Diameter | approximately 2-3/8 in. |
| Frame Finish | Powder-coated |
| Cover Material | Triple-layer / approximately 9 oz polyethylene |
| Cover UV Treatment | Yes - UV-treated inside and out |
| Seams | Heat-welded / waterproof |
| Shape | Round |
| Doors | Front and rear double-zippered fabric doors |
| ShelterLock Rib Stabilizers | Yes |
| Ratchet-Tite Cover Tensioning | Yes |
| Easy-Slide Cross Rails | Yes |
| Universal Steel Foot Plates | Yes |
| Floor Included | No |
| Anchoring Required | Yes - per manufacturer instructions |
| Wind/Snow Rated | Yes (certified ShelterCoat configuration) |
| Snow Rating | approximately 40 PSF |
| Wind Rating | approximately 75 MPH |
| Assembly Required | Yes |
| Warranty | 1-year limited (standard configuration) |
FAQ
Frame: Heavy-duty powder-coated steel. Tube diameter: approximately 2-3/8 in..
Triple-layer approximately 9 oz polyethylene, heat-welded waterproof seams
Yes, the cover is UV-treated inside and out.
Front and rear double-zippered fabric doors
Yes, anchoring is required per manufacturer instructions.
Snow rating: approximately 40 PSF (certified ShelterCoat configuration). Wind rating: approximately 75 MPH.
No, a floor is not included.
Yes, assembly is required. Typically 2-3 people are recommended.
Frame: Heavy-duty powder-coated steel. Tube diameter: approximately 2-3/8 in..
Triple-layer approximately 9 oz polyethylene, heat-welded waterproof seams
Yes, the cover is UV-treated inside and out.
Front and rear double-zippered fabric doors
Yes, anchoring is required per manufacturer instructions.
Snow rating: approximately 40 PSF (certified ShelterCoat configuration). Wind rating: approximately 75 MPH.
No, a floor is not included.
Yes, assembly is required. Typically 2-3 people are recommended.
